Hide <CMS_GROUP> via Rules not working properly

Zendesk API User

• 15. Oktober 2020 08:05

Author: sivaprasad9394
Publication Date: 10/15/2020 8:05

Hello,

FS Version: 5.2.190910.78562

Based on the selection of the Combobox value i have to hide and display of the CMS_GROUP completely.

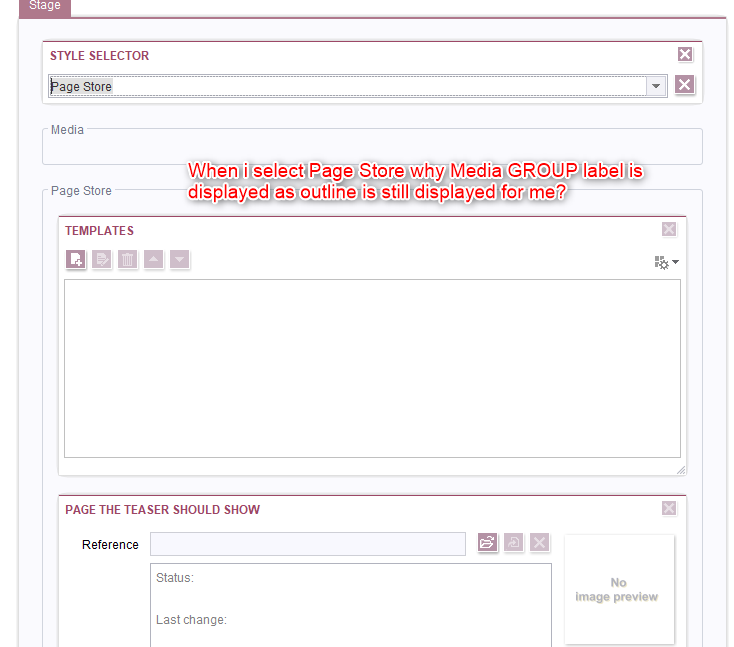

But CMS_GROUP label text outline box is displayed. its not hidden. How to do achieve it?

FORM:

  <CMS_GROUP name="pt_media">

        <LANGINFOS>

          <LANGINFO lang="*" label="Media"/>

        </LANGINFOS>

............................

........... IT has 3 components inside .......

.............................................................

</CMS_GROUP>

<CMS_GROUP name="pt_page_store">

        <LANGINFOS>

          <LANGINFO lang="*" label="Page Store"/>

        </LANGINFOS>

..........

..... 2 component inside .....

....................................

</CMS_GROUP>

<CMS_GROUP name="pt_page_ref_folder">

        <LANGINFOS>

          <LANGINFO lang="*" label="Page Ref Folder"/>

        </LANGINFOS>

...........................................

.......... It has 1 component inside .....

...............................................................

</CMS_GROUP>

RULES:

<RULE>
        <WITH>
            <EQUAL>
                <PROPERTY name="ENTRY" source="pt_style_selector"/>
                <TEXT>Stage_PageStore</TEXT>
            </EQUAL>
        </WITH>
        <DO>
            <PROPERTY name="VISIBLE" source="#form.pt_page_store"/>
            <NOT>
                <PROPERTY name="VISIBLE" source="#form.pt_page_ref_folder"/>
                <PROPERTY name="VISIBLE" source="#form.pt_media"/>
                <PROPERTY name="VISIBLE" source="teaser_headline"/>
                <PROPERTY name="VISIBLE" source="pt_image"/>
                <PROPERTY name="VISIBLE" source="st_link"/>
            </NOT>
        </DO>
    </RULE>

https://community.e-spirit.com/message/14616

Looks like we cant remove of hide the outline of the GROUP.

Thanks in advance..

Thank s and Regards,

Siva

Tags: cms_group, form, rules

Verknüpfung mit

• Knowledgebase
• Developers
• Project Usage

0

•

  Zendesk API User

  • 15. Oktober 2020 08:39

  Author: bianca_batsch - 10/15/2020 8:39


  Hi Siva,

  rules are not easy... I solved a similar case in this way:

  Important is, that you have to surround the

  1. <EQUAL>
  2.                 <PROPERTY name="ENTRY" source="pt_style_selector"/>
  3.                 <TEXT>Stage_PageStore</TEXT>
  4.             </EQUAL>

  with <NOT> and then describe the behaviour for the case, when this is true

  HTH Bianca

  0
•

  Zendesk API User

  • 15. Oktober 2020 08:55

  Author: sivaprasad9394 - 10/15/2020 8:55


  Hi Bianca,

  Thank you for your reply and time.

  But it is not solving my problem.

  The out line for the Group label is not removed any case.

  Thanks and Regards,

  Siva

  0
•

  Zendesk API User

  • 15. Oktober 2020 09:04

  Author: bianca_batsch - 10/15/2020 9:04


  For me this is working in this way.

  I just played a little around an it works. Maybe you should surround every formelement separately with <not> for the visibility.

  0
•

  Zendesk API User

  • 15. Oktober 2020 09:49

  Author: sivaprasad9394 - 10/15/2020 9:49


  Hi Biance,

  Thank you for your time and quick reply.

  I have tried the same with adding <NOT> for every component which need to be hidden.

  But it does-not sole the issue.

  <RULES>

      <RULE>

          <WITH>

              <EQUAL>

                  <PROPERTY name="ENTRY" source="pt_style_selector"/>

                  <TEXT>Stage_Image</TEXT>

              </EQUAL>

          </WITH>

          <DO>

              <NOT>

                  <PROPERTY name="VISIBLE" source="#form.pt_page_ref_folder"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="#form.pt_page_store"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="st_template_selector"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="st_ref"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="pt_folder"/>

              </NOT>

          </DO>

      </RULE>

      <RULE>

          <WITH>

              <EQUAL>

                  <PROPERTY name="ENTRY" source="pt_style_selector"/>

                  <TEXT>Stage_PageStore</TEXT>

              </EQUAL>

          </WITH>

          <DO>

              <NOT>

                  <PROPERTY name="VISIBLE" source="#form.pt_media"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="teaser_headline"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="pt_image"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="st_link"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="#form.pt_page_ref_folder"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="pt_folder"/>

              </NOT>

          </DO>

      </RULE>

      <RULE>

          <WITH>

              <EQUAL>

                  <PROPERTY name="ENTRY" source="pt_style_selector"/>

                  <TEXT>Stage_PageRefFolder</TEXT>

              </EQUAL>

          </WITH>

          <DO>

              <NOT>

                  <PROPERTY name="VISIBLE" source="#form.pt_media"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="#form.pt_page_store"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="teaser_headline"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="pt_image"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="st_link"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="st_template_selector"/>

              </NOT>

              <NOT>

                  <PROPERTY name="VISIBLE" source="st_ref"/>

              </NOT>

          </DO>

      </RULE>

  </RULES>

  Thanks and Regards,

  Siva

  0
•

  Zendesk API User

  • 15. Oktober 2020 09:53

  Author: bianca_batsch - 10/15/2020 9:53


  you have to put the <WITH> - Statement with including <NOT> - see my Screenshot

  0
•

  Zendesk API User

  • 3. März 2022 13:47

  Author: javier_fernande - 3/3/2022 13:47


  I know it's an old one but I was having the same issue. You just have to add #form to the cms_group name in the rule.

  For example:
  <PROPERTY name="VISIBLE" source="#form.cms_group_name"/>

  0
